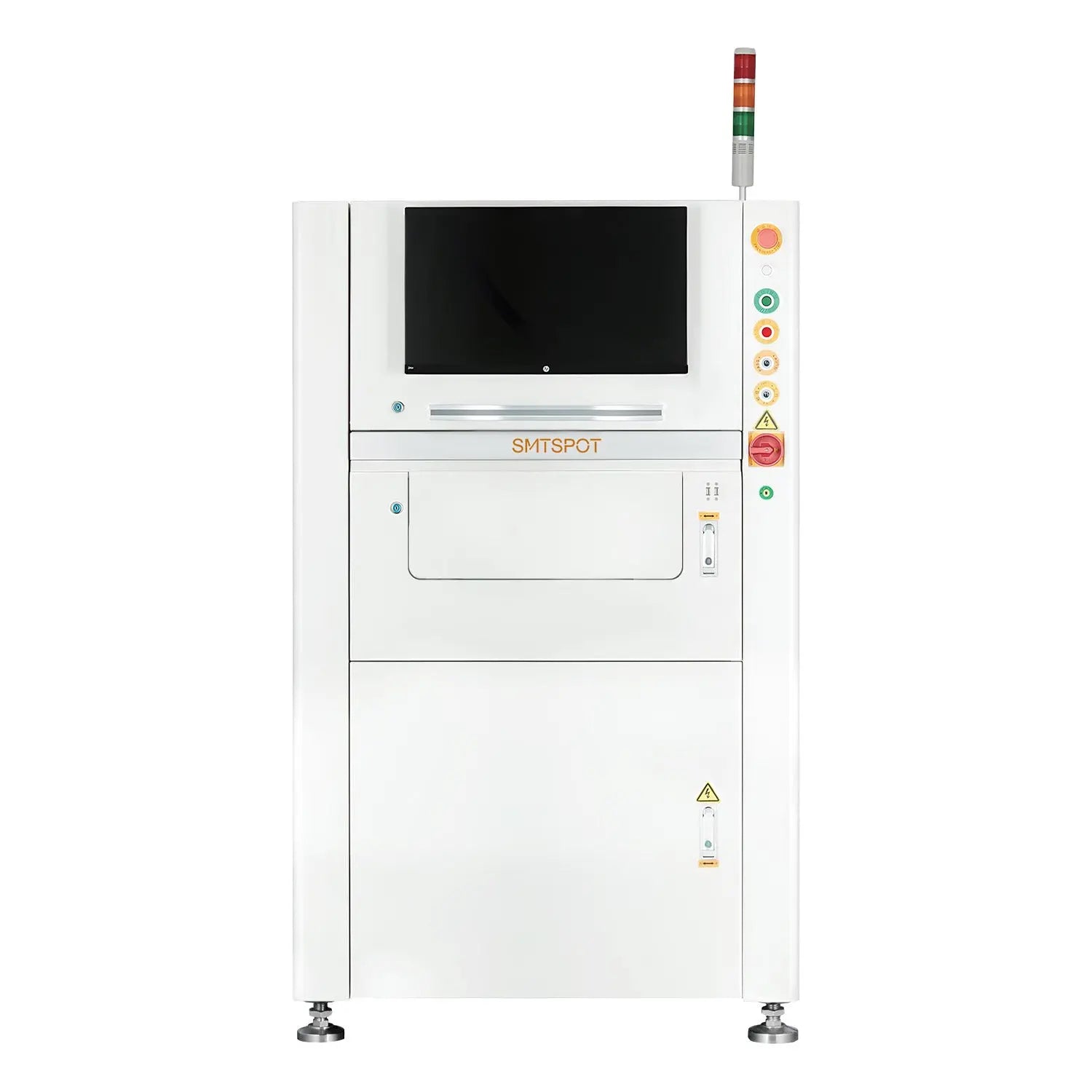

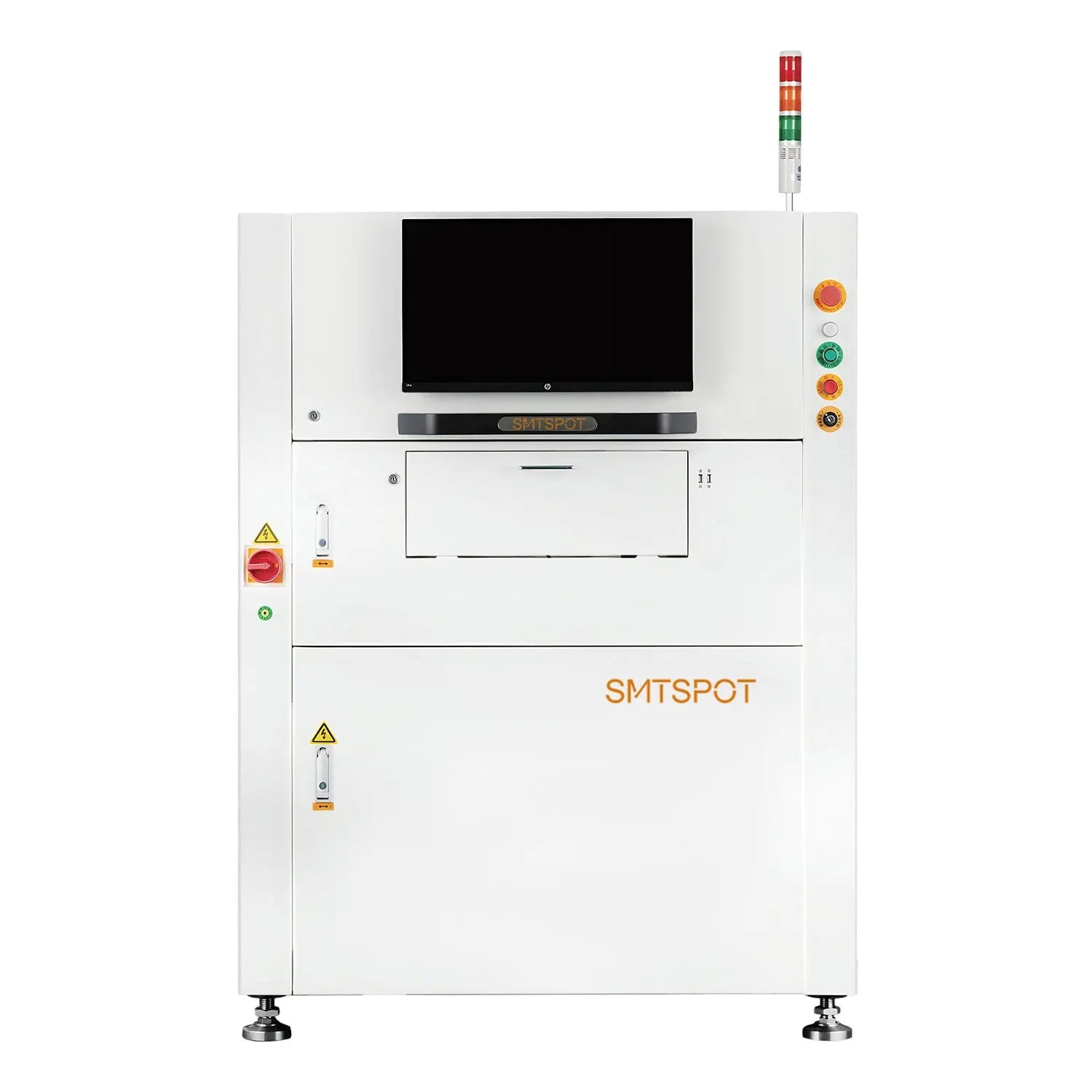

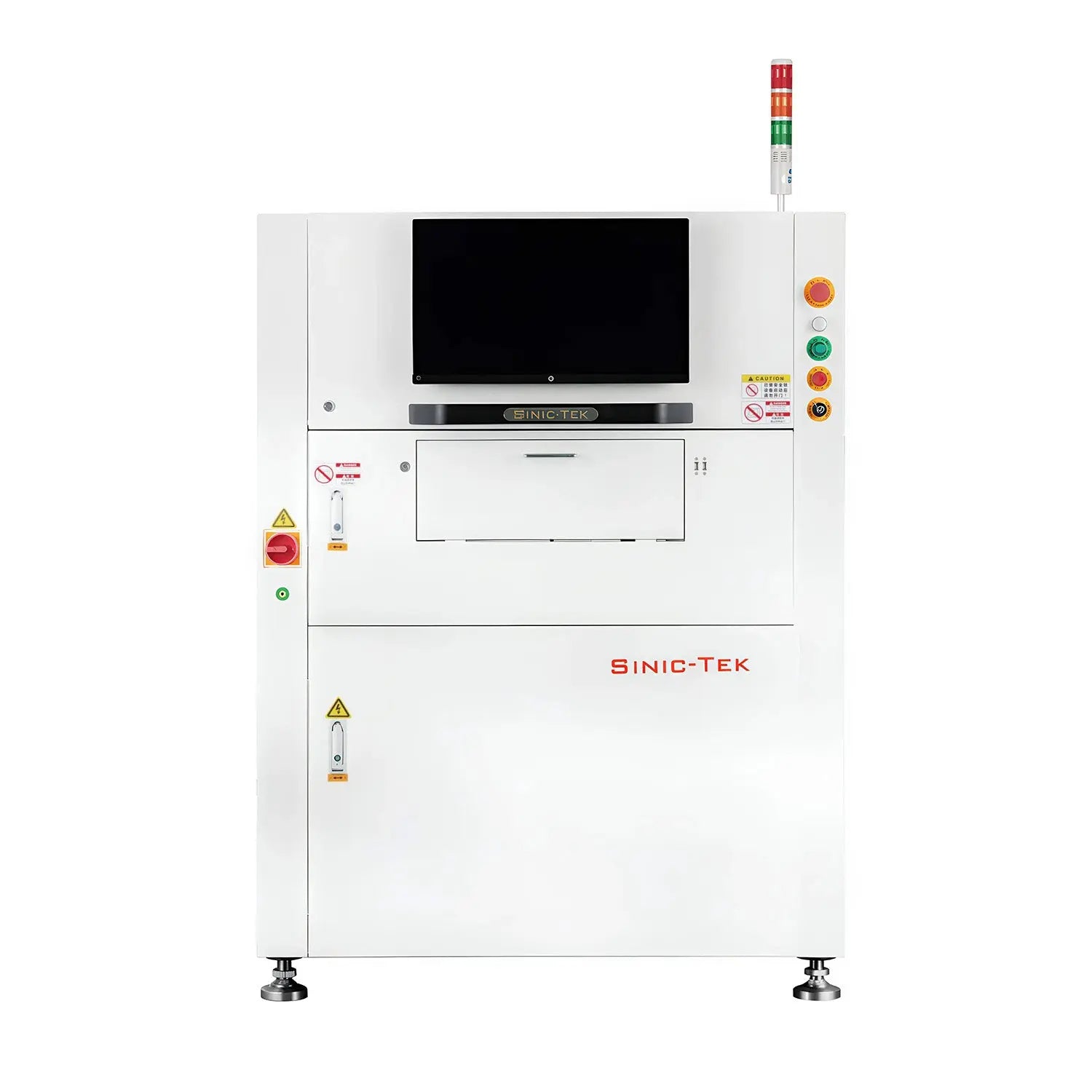

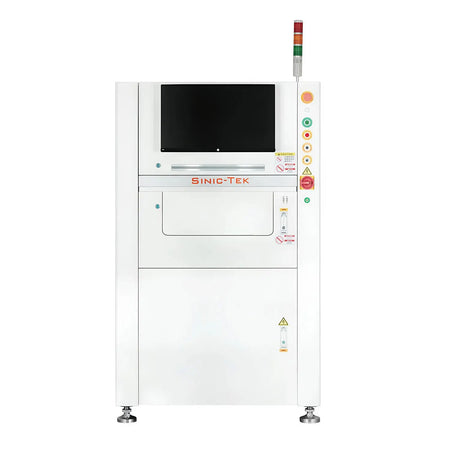

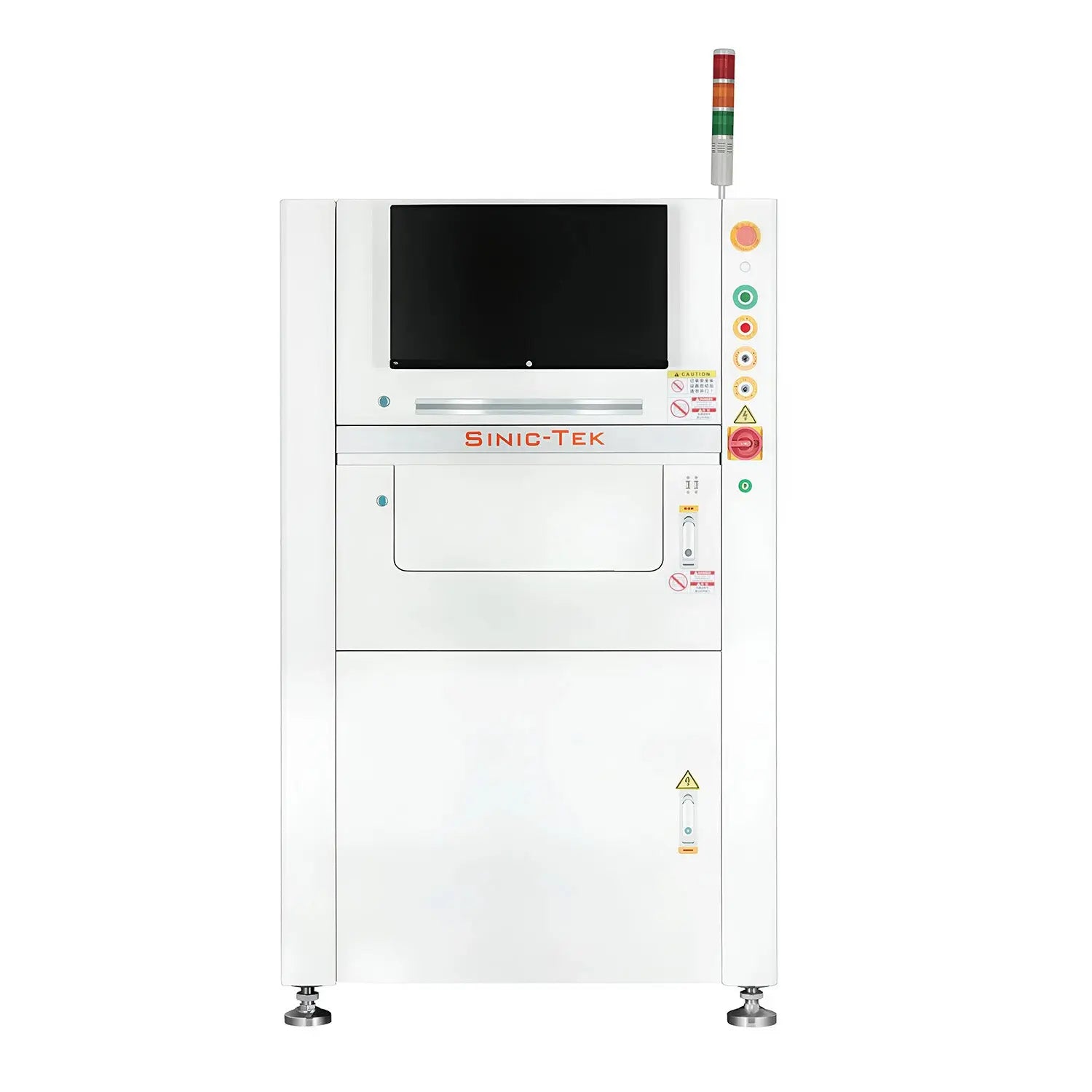

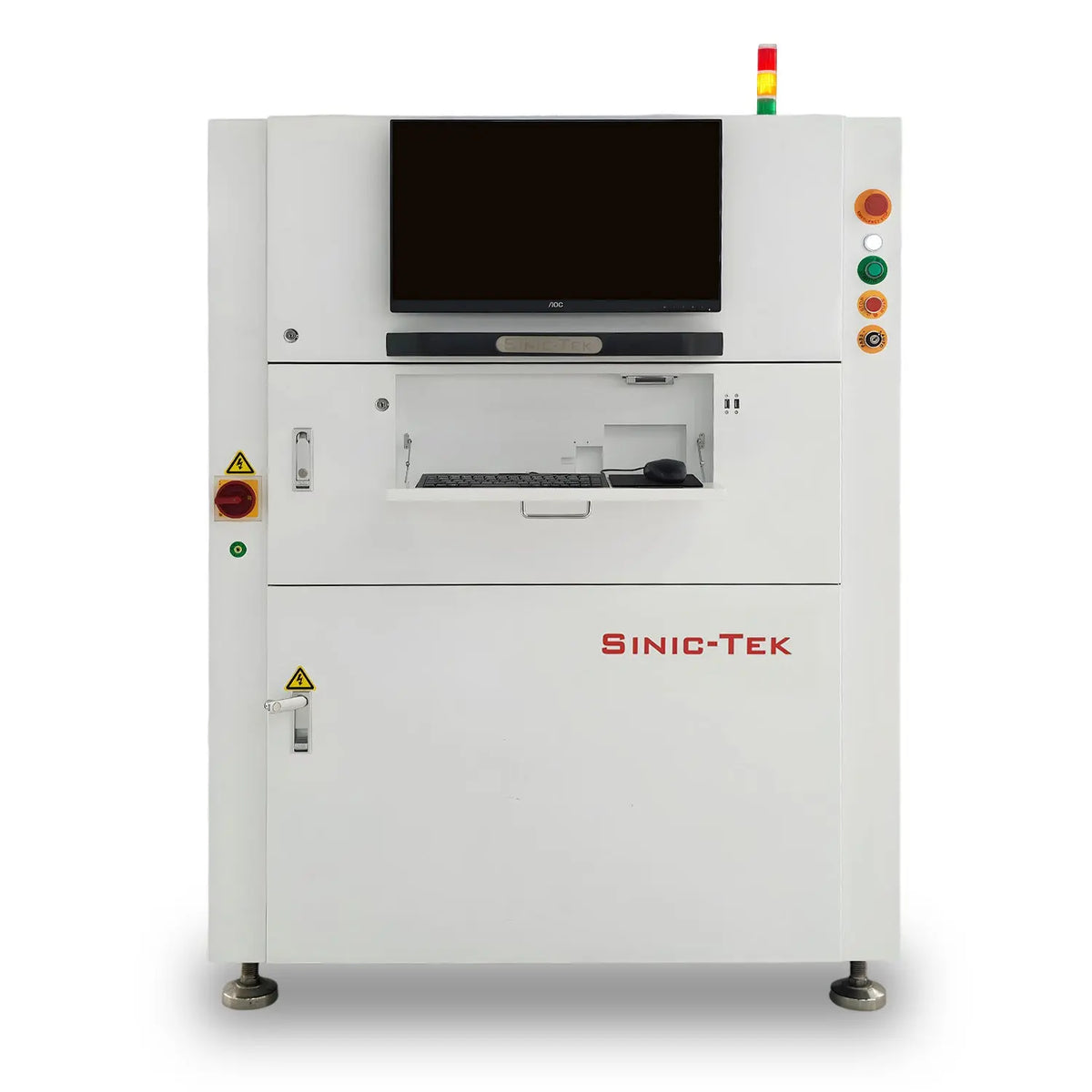

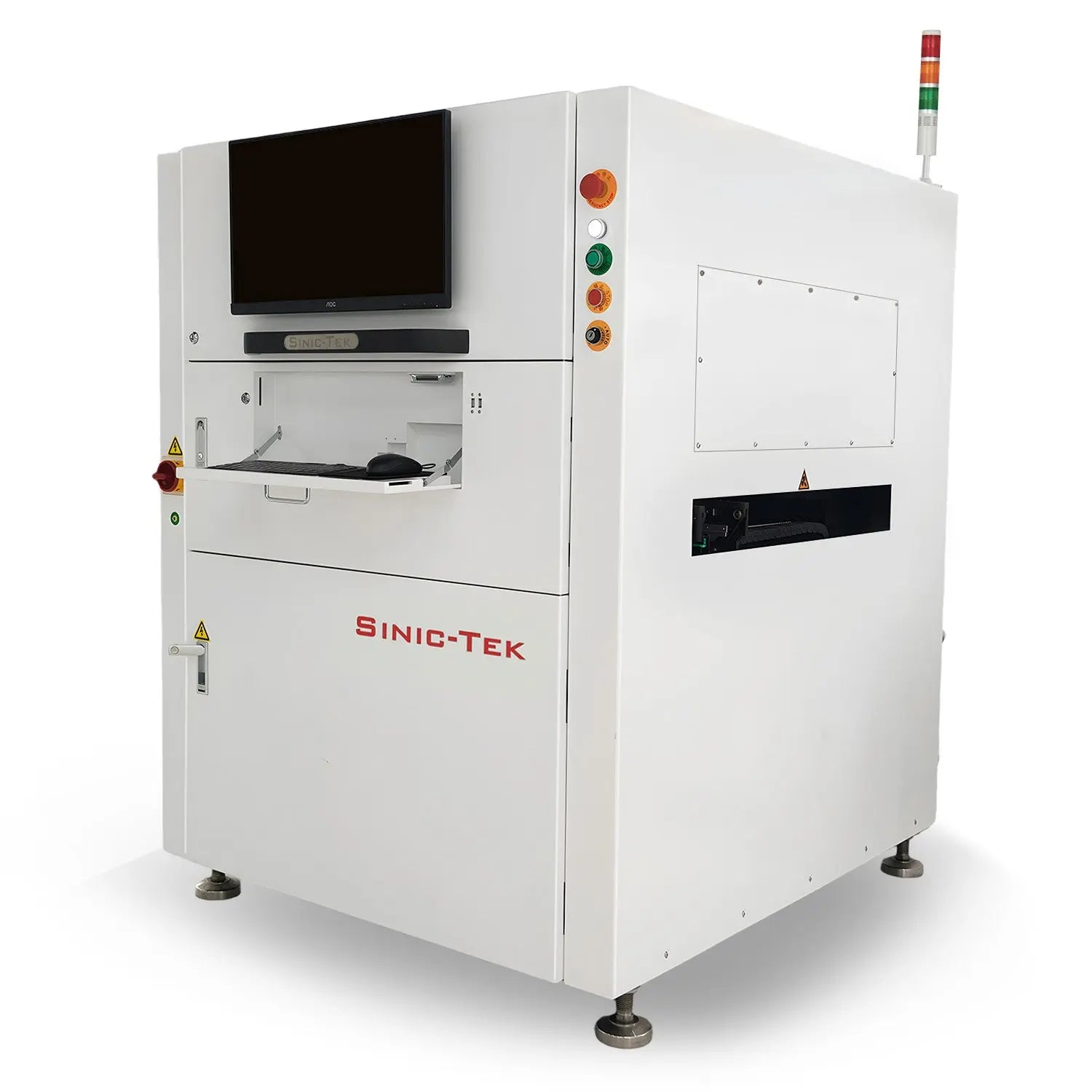

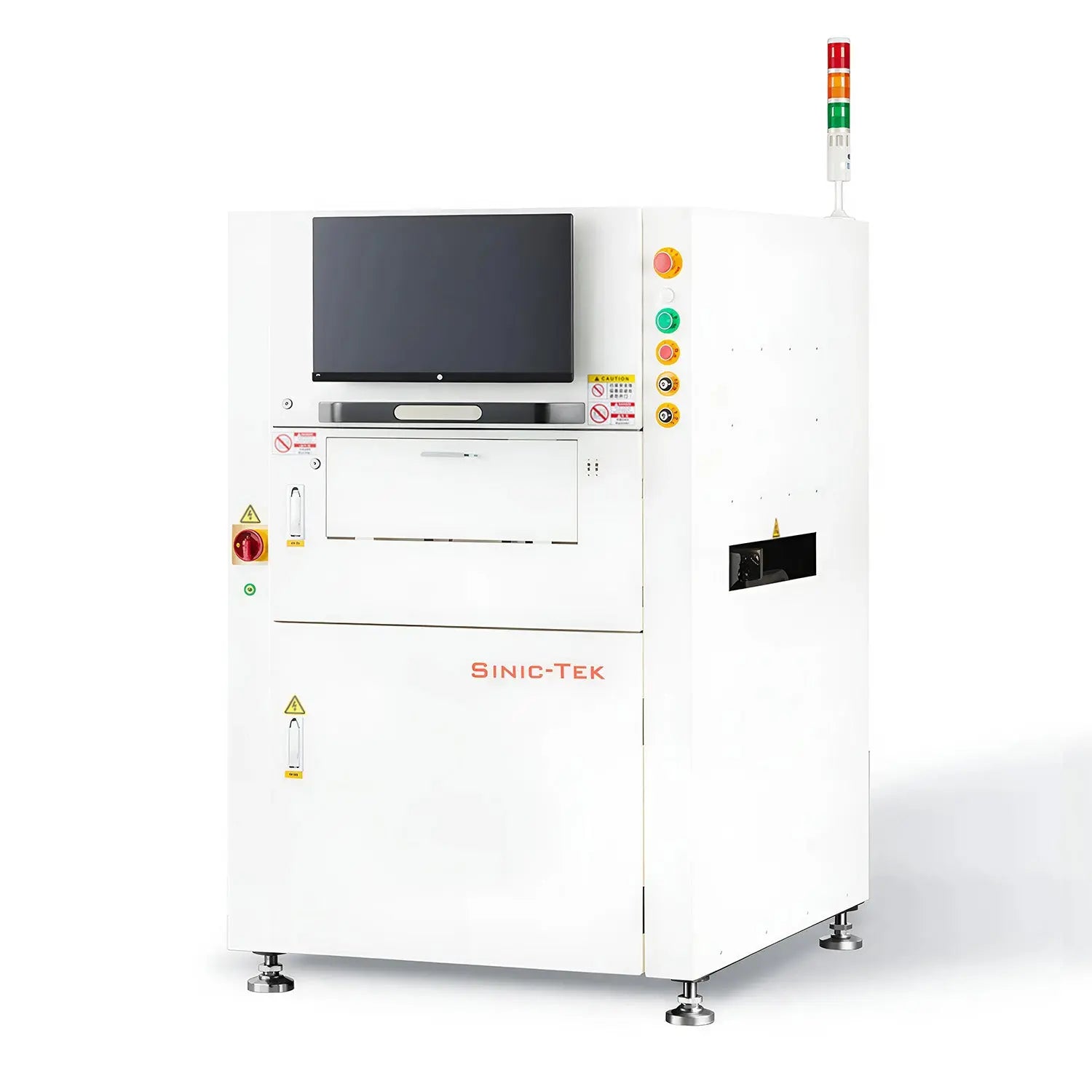

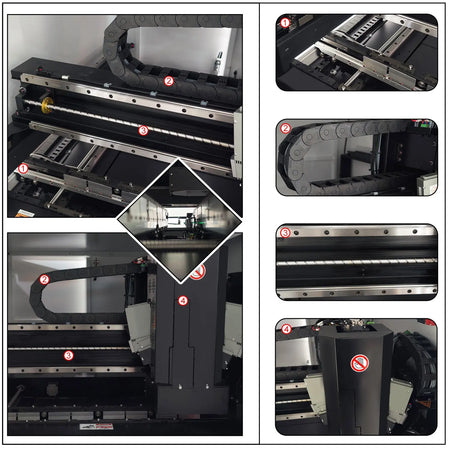

3D Solder Paste Inspection (SPI) System with White Light PMP Technology, ≤1 μm Repeatability for SMT PCB Inspection
Regular price
$1.00
- High-Accuracy 3D Measurement: utilizes advanced white-light PMP technology to accurately inspect solder paste volume, height, area, shape, and XY offset, ensuring reliable process control throughout SMT production
- Fast and Reliable Inspection: delivers inspection speeds as fast as 0.35-0.5 sec/FOV while maintaining excellent repeatability of ≤1 μm and volume/area variation below 1%
- Fine-Pitch Component Capability: supports inspection of ultra-small components down to 01005 and optional 03015 packages, making it suitable for high-density and advanced PCB assemblies
- Intelligent Quality Control: automatically detects solder defects including insufficient paste, excess paste, bridging, misalignment, shape abnormalities, and board contamination, helping reduce production defects
- Flexible Integration and Data Analysis: supports Gerber and CAD import, comprehensive SPC analysis tools, barcode integration, and centralized management options for efficient SMT process monitoring and optimization
Couldn't load pickup availability
Please feel free to contact us anytime. All your questions will be answered within timely manner.
- High-Accuracy 3D Measurement: utilizes advanced white-light PMP technology to accurately inspect solder paste volume, height, area, shape, and XY offset, ensuring reliable process control throughout SMT production
- Fast and Reliable Inspection: delivers inspection speeds as fast as 0.35-0.5 sec/FOV while maintaining excellent repeatability of ≤1 μm and volume/area variation below 1%
- Fine-Pitch Component Capability: supports inspection of ultra-small components down to 01005 and optional 03015 packages, making it suitable for high-density and advanced PCB assemblies
- Intelligent Quality Control: automatically detects solder defects including insufficient paste, excess paste, bridging, misalignment, shape abnormalities, and board contamination, helping reduce production defects
- Flexible Integration and Data Analysis: supports Gerber and CAD import, comprehensive SPC analysis tools, barcode integration, and centralized management options for efficient SMT process monitoring and optimization
